Heavy-duty cabinet

2.340,23 EUR
incl. of VAT

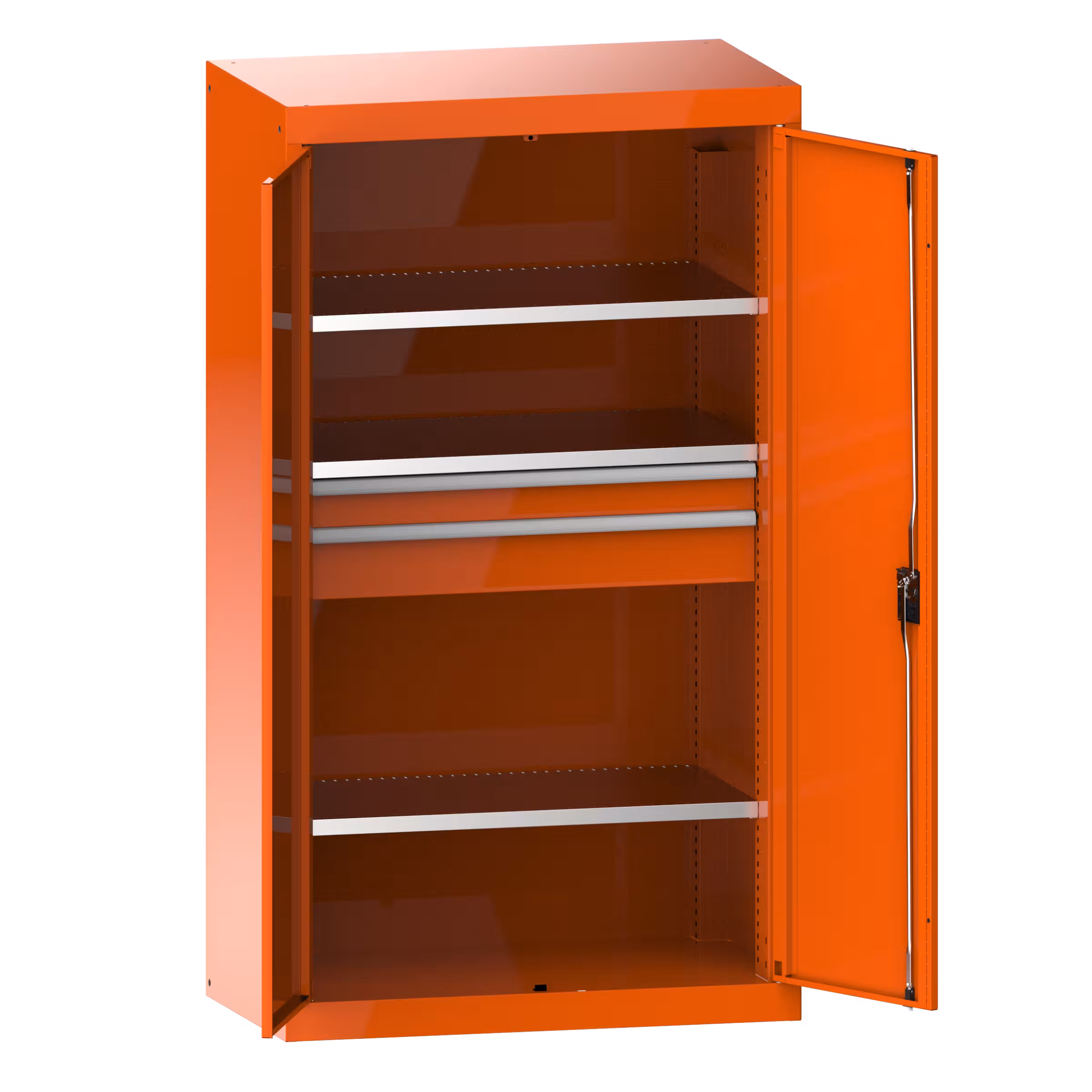

Heavy-duty cabinet with solid sheet hinged doors 54x27E (WxDxH) 1100x641x1950mm 3 shelves, 2 drawers KEY Lock Orange RAL 2004

Other color variants

Accessories

Description

Heavy-duty cabinets with hinged doors: The cabinets are fitted with: adjustable shelves, galvanised, 35 mm thick, pull-out shelves and drawers, painted, generally grey, NCS 4502-B. Hinged doors folded from one piece, optionally either in solid sheet or with viewing windows. KEY, CODE or RFID locks available.

Pintal bearing assembly: The doors are flush with the cabinet housing. Opening angle approx. 115°.

KEY Lock: KEY Lock, our standard locking system with replaceable cylinders. Manual opening/locking with key.

Notes

Max. installation height for drawers and pull-out shelves: 1400 mm of the housing opening.

report

Attention: drawers and pull-out shelves in dove grey NCS S 4502-B

Technical Data

Description
Heavy-duty cabinet
Net weight kg
141
LISTA units
54 x 27 E
Width mm
1100
Depth mm
641
Height mm
1950
Clear height mm
1790
Number of front heights mm
1 x 100 / 1 x 150
Drawers useful width mm
918
Drawers useful depth mm
459
Number of drawers
2
Drawer load capacity kg
200
Number of adjustable shelves
3
Adjustable shelf load capacity kg
160
Locking system
KEY Lock
Door type
Hinged doors
Door material
Solid sheet
Hinge pins mounted
Pintle bearing
Colour
Orange RAL 2004
Product specific advantages
add_box

Maximum stability
with a housing load capacity of up to 1500 kg

add_box

High capacities
160 kg per adjustable shelf, 200 kg per drawer/pull-out shelf

add_box

Outstanding safety features
with single-drawer blocking system for heavy-duty cabinets with retracting doors to prevent the cabinet from tipping over

add_box

Maximum ease of use
thanks to fast access to all stored goods, especially with retracting doors or smooth-running roller shutters with user-friendly push handle

add_box

Secure locking option
with retracting doors, hinged doors or roller shutter and intelligent locking systems

add_box

Outstanding protection
against dirt, liquids and physical loads thanks to closed housing with impact-resistant and abrasion-resistant surface

add_box

Clear organisation
with viewing windows made from UV-resistant, shatterproof acrylic glass

add_box

Easily adaptable to new stored goods
by installing or converting drawers, pull-out shelves and adjustable shelves in 25 mm increments as required

add_box

Fully compatible with LISTA drawer cabinets and drawer storage walls because of the standardised unit of measure
