Lista GmbH Shop – Drawer cabinet

Drawer cabinet

4.049,57 EUR

incl. of VAT

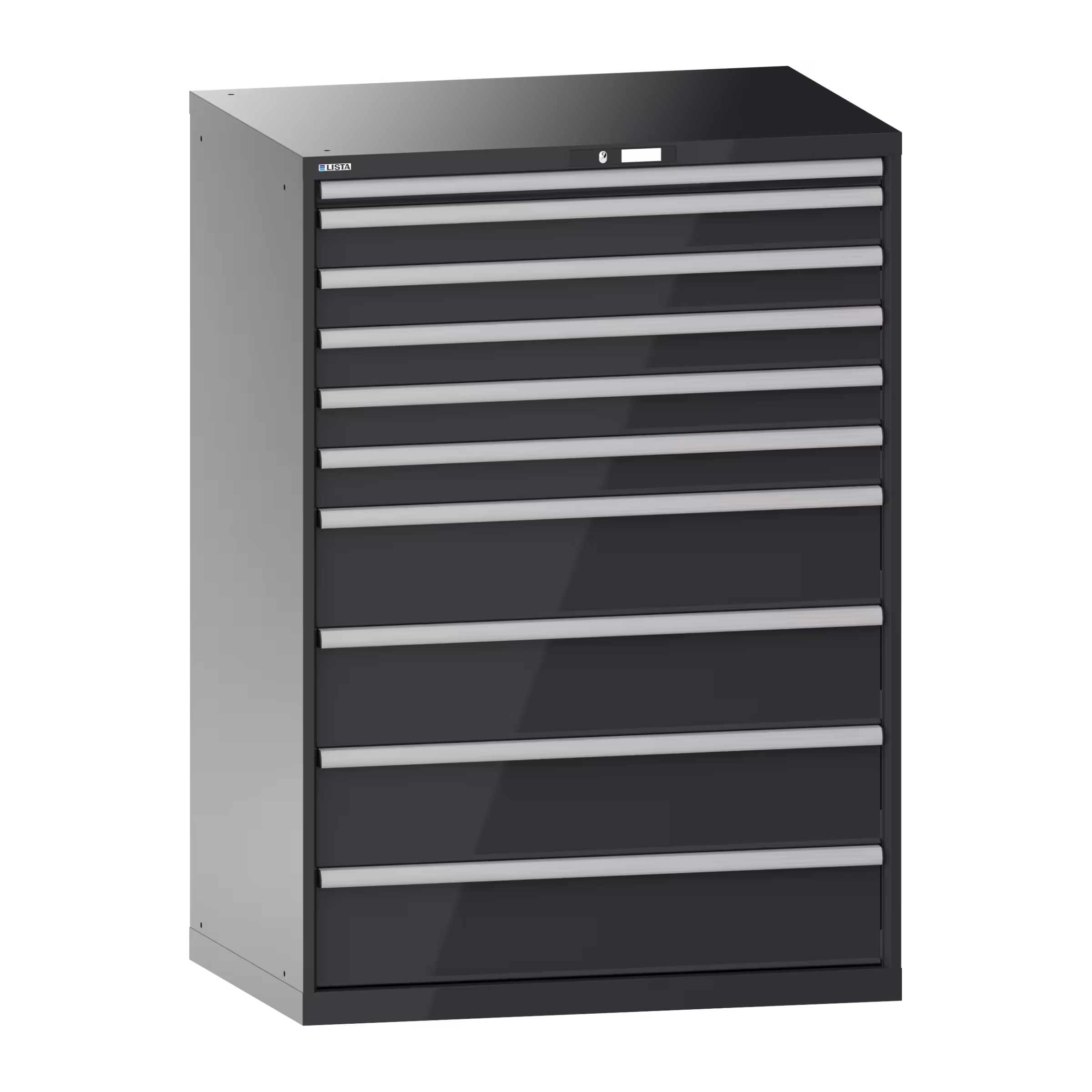

Drawer cabinet 54x36E (WxDxH) 1023x725x1450mm 10 drawers (1x50*/5x100/4x200) *75/200kg KEY Lock Anthracite grey RAL 7016

Other color variants

Accessories

Description

KEY Lock: KEY Lock, our standard locking system with replaceable cylinders. Manual opening/locking with key.

Drawer safety device standard: Standard configuration including single-drawer blocking system

* Load capacity max. 75 kg

Notes

For filling and loading up the drawers and drawer cabinets, please follow the assembly instructions and the loading rules. Capacity applies with evenly distributed load.

Technical Data

Description

Drawer cabinet

Net weight kg

249

LISTA units

54 x 36 E

Width mm

1023

Depth mm

725

Height mm

1450

Clear height mm

1350

Number of front heights mm

1 x 50* / 5 x 100 / 4 x 200

Drawer safety catch

Standard

Drawer clear dimensions (W x D) mm

900 x 600

Drawers useful width mm

918

Drawers useful depth mm

612

Number of drawers

Drawer load capacity kg

200

Locking system

KEY Lock

Colour

Anthracite grey RAL 7016

Product specific advantages

Maximum stability
with load capacity of housing up to 4 t and load capacity of drawers 75 or 200 kg

Maximum space utilisation
since drawers can be fully extended and drawer cladding heights are optimised

Outstanding protection
against dirt, liquids and physical loads thanks to closed housing with impact-resistant and abrasion-resistant surface

Outstanding safety features
Safety catch to prevent the drawers from falling out and single-drawer blocking system as an anti-tilt mechanism

Corrosion protection
with electrophoretic dip painting and environmentally-friendly powder coating

Optimum order and organisation
thanks to special LISTA partition material for every purpose and perforated, slotted drawers

Professional labelling
with LISTA Script labelling software and handles which fold upwards for inserting the labels

Extremely quiet
thanks to differential pull-out without a crossbar

Flexible adaptation options
with pre-perforated holes for table tops (punch-outs), castors, drawers, locking systems for easy retrofitting and refitting
